More Curiosity site mapping

Supplementing the new images by MSL of Aeolis Mons in Gale crater and the discussion,
here are some visualizations created using Microdem and the MOLA DTM.

1 The crest in the direction of the secondary peak is 37 km away from MSL and at 6 deg elevation angle


















2 - MOLA DTM with contour lines 200m apart
range circles at 1, 2, 5, 10, 20 km from MSL



























3 Perspective view from 100m above MSL landing site














Original size 2400x600 here

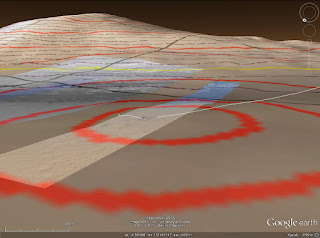

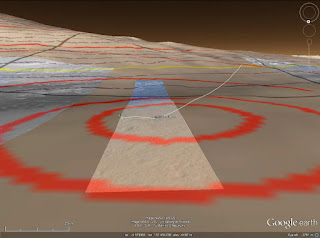

5 Google Mars view with Microdem overlay

6 Google Mars view

7 Google Mars view


8 Google Mars view
